Z203
Z203 is an ultra-performance wax/resin ribbon that bridges the gap between traditional wax/resin and resin formulations. Built on a highly responsive ink system and a thin polyester base, it enables fast, low-energy printing while delivering durability levels typically associated with pure resin ribbons. Z203 performs exceptionally well in applications that require abrasion resistance and stable imaging under cold-chain or refrigerated conditions, making it an ideal solution for medical, pharmaceutical, and electronics labeling where both speed and image integrity are essential.
Product Details

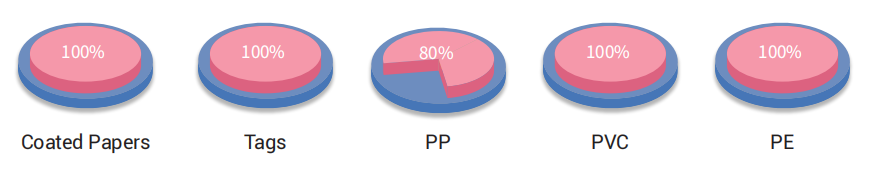

Recommended substrates
Printing characteristics
| Ink color | Black |
|---|---|
| Color density | ≥1.7 (test on X-Rite tester) |
| Abrasion resistance | ≥500 times (200g weight, test on coated papers) |
| Alcohol resistance | ≥20 times (500g weight, 95% ethyl alcohol, test on PET labels) |

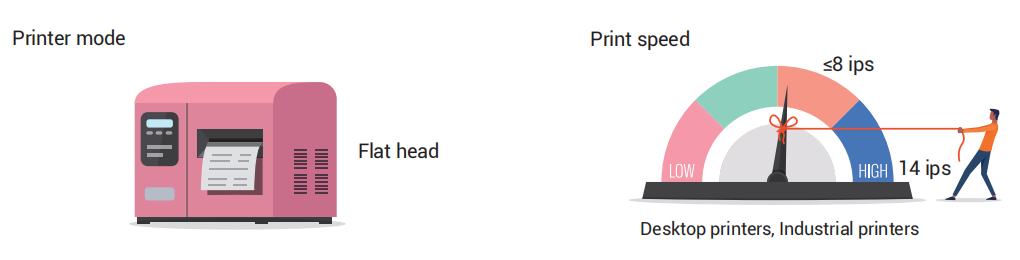

Recommended printing conditions
※Depending on the type of printer and material of substrates, the printing performance may vary.

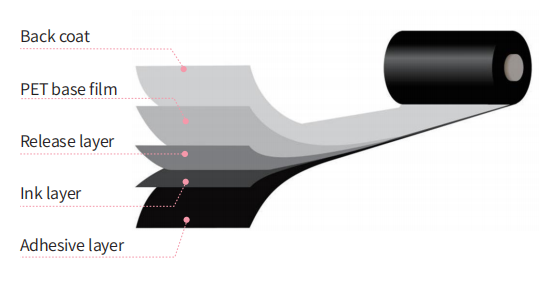

Technical specifications
| Base film | BOPET |
|---|---|
| Total ribbon thickness (μm) | 5.9±0.5 |
| Storage conditions | -5℃~40℃ 20%~85% Relative Humidity |
| Base film thickness (μm) | 3.5±0.2 |
| Ink melting point | 95℃ |
| Shelf life | 1 year |
Recommended usage conditionsCertificates and reports
Application scenario
