Z300
Z300 is a UL-recognized premium resin engineered for flat-head printers operating in high-speed, high-efficiency environments. With a unique ultra-thin base film, Z300 enables printing at up to 10 inches per second while requiring less energy input, helping to extend printhead life and reduce maintenance cycles. It delivers precise, durable prints across a wide range of materials — from coated papers to flexible films.
Product Details

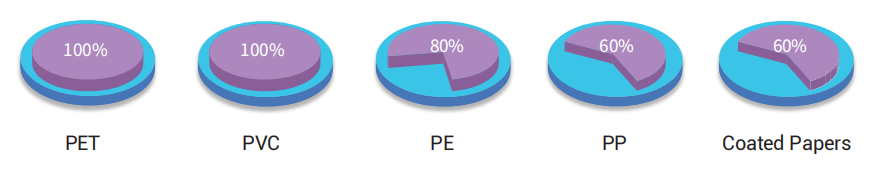

Recommended substrates
Printing characteristics
| Ink color | Black |
|---|---|
| Color density | ≥1.7 (test on X-Rite tester) |
| Abrasion resistance | ≥60 times (200g weight, test on CS-10 rub tester) |
| Alcohol resistance | ≥50 times (500g weight, 95% ethyl alcohol, test on PET labels) |

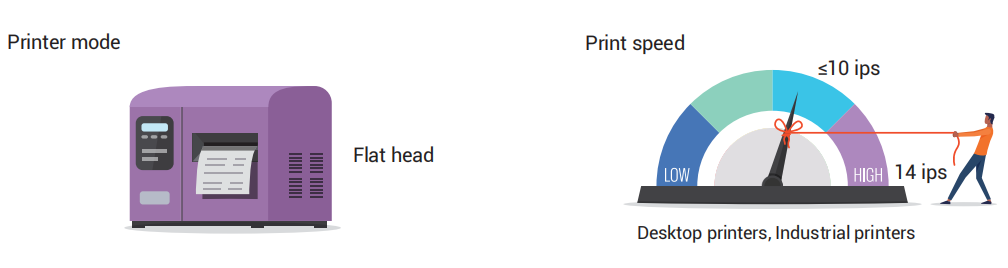

Recommended printing conditions
※Depending on the type of printer and material of substrates, the printing performance may vary.

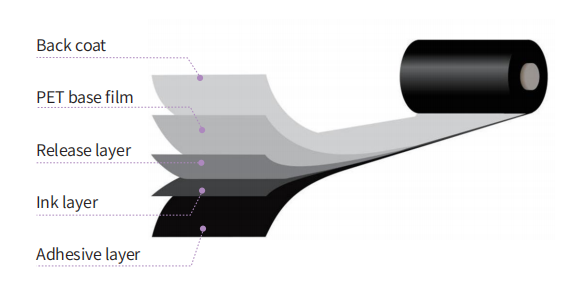

Technical specifications
| Base film | BOPET |
|---|---|
| Total ribbon thickness (μm) | 5.9±0.5 |
| Storage conditions | -5℃~40℃ 20%~85% Relative Humidity |
| Base film thickness (μm) | 3.5±0.2 |
| Ink melting point | 90℃ |
| Shelf life | 1 year |
Recommended usage conditionsCertificates and reports

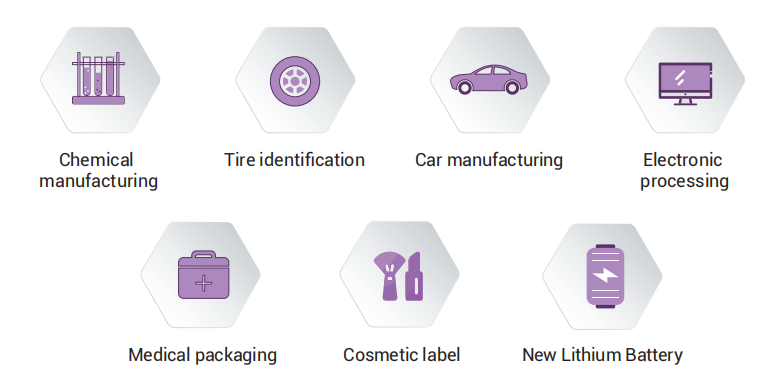

Application scenario
Inquiry
Leave us a message and our TTR specialist will respond with tailored solutions.
