Z301
Z301 is an essential resin designed for flat-head printers, offering reliable resistance to abrasion and heat in standard environments. It ensures consistent print clarity and strong adhesion on a wide range of synthetic and polyester label materials. Z301 is well-suited for applications that demand core durability — a dependable choice for industrial labeling.
Product Details

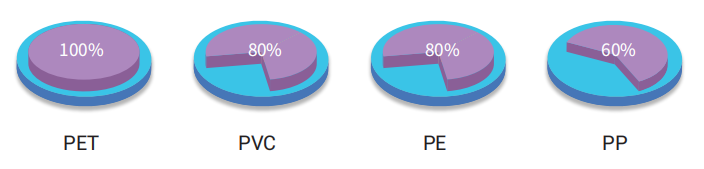

Recommended substrates
Printing characteristics
| Ink color | Black |
|---|---|
| Color density | ≥1.5 (test on X-Rite tester) |
| Abrasion resistance | ≥70 times (500g weight, test on CS-10 rub tester) |
| Alcohol resistance | ≥50 times (500g weight, 95% ethyl alcohol, test on PET labels) |

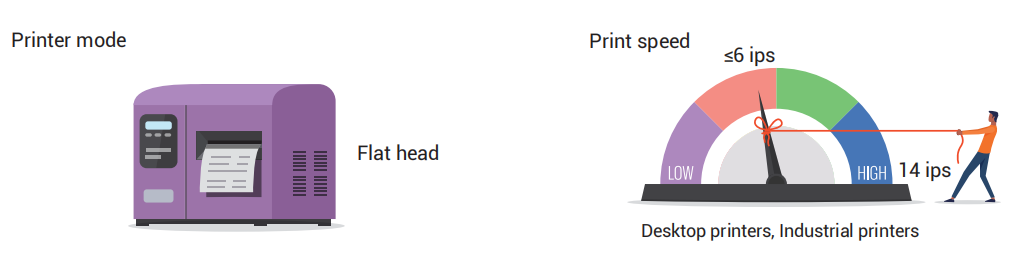

Recommended printing conditions
※Depending on the type of printer and material of substrates, the printing performance may vary.
Technical specifications

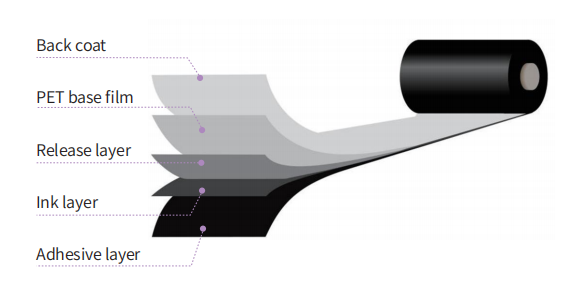

| Base film | BOPET |
|---|---|
| Total ribbon thickness (μm) | 6.7±0.5 |
| Storage conditions | -5℃~40℃ 20%~85% Relative Humidity |
| Base film thickness (μm) | 4.5±0.2 |
| Ink melting point | 98℃ |
| Shelf life | 1 year |
Recommended usage conditionsCertificates and reports

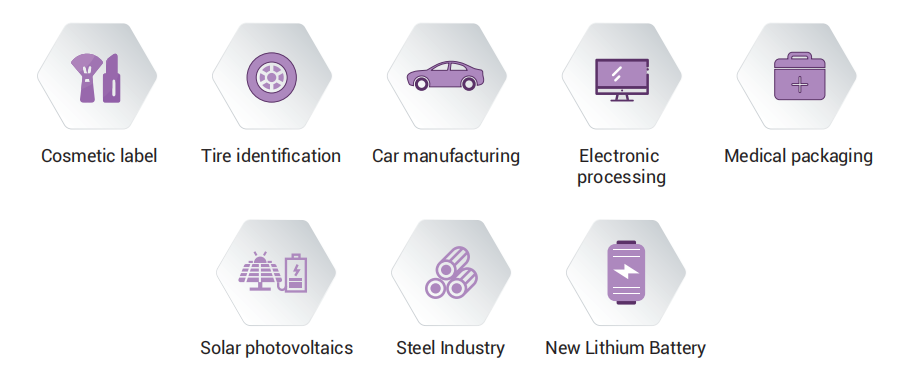

Application scenario
Inquiry
Leave us a message and our TTR specialist will respond with tailored solutions.
