Z302
Z302 is a UL-recognized general-purpose resin built for flat-head printing environments where mechanical abrasion, chemical exposure, and elevated temperatures are daily challenges. It delivers dense, durable images with excellent edge definition, maintaining performance even under aggressive handling or solvent contact. Z302 is highly compatible with a broad range of synthetic labels, polyester tags, and other durable substrates, a trusted solution for industrial, automotive, and chemical labeling applications that require resistance without compromise.
Product Details

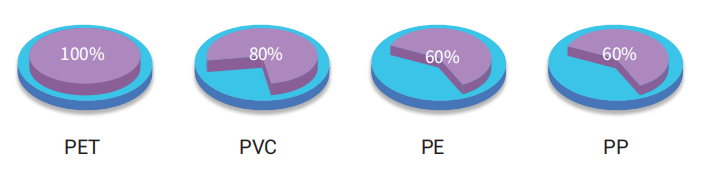

Recommended substrates
Printing characteristics
| Ink color | Black |
|---|---|
| Color density | ≥1.5 (test on X-Rite tester) |
| Abrasion resistance | ≥90 times (500g weight, test on CS-10 rub tester) |
| Alcohol resistance | ≥60 times (500g weight, 95% ethyl alcohol, test on PET labels) |

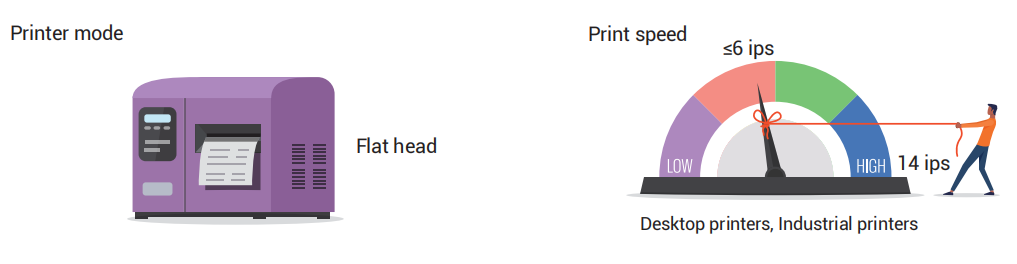

Recommended printing conditions
※Depending on the type of printer and material of substrates, the printing performance may vary.

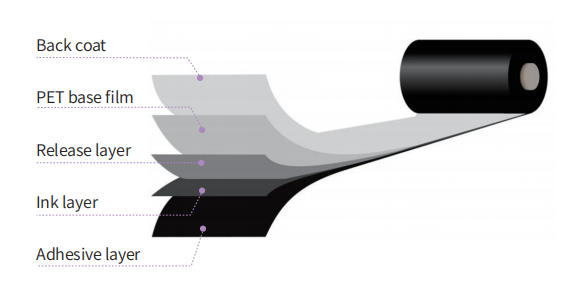

Technical specifications
| Base film | BOPET |
|---|---|
| Total ribbon thickness (μm) | 6.9±0.5 |
| Storage conditions | -5℃~40℃ 20%~85% Relative Humidity |
| Base film thickness (μm) | 4.5±0.2 |
| Ink melting point | 100℃ |
| Shelf life | 1 year |
Recommended usage conditionsCertificates and reports

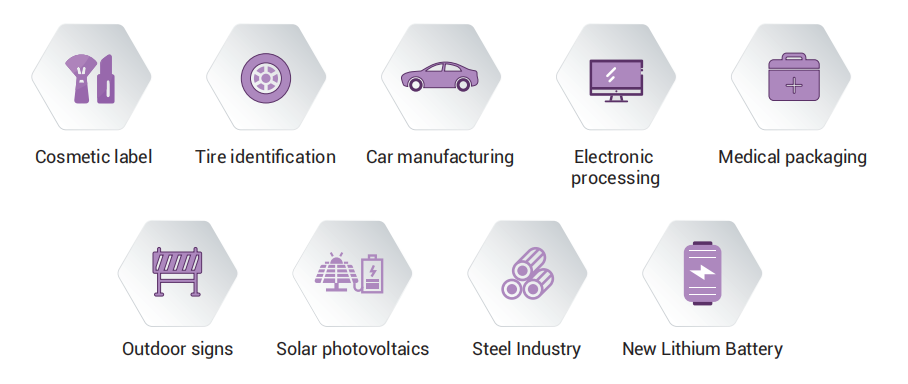

Application scenario
